Name: 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range
Brand: Qingdao Dazefengyang Meter& Welding Instruments Co., Ltd.
SKU: YTN-63
Price: 500.26 USD
Availability: InStock

特徴ギャラリー製品の説明見積依頼

特徴

仕様

カスタマイズされたサポート: OEM、ODM、OBM

材料: ステンレス鋼のケース

元の場所: 中国製

ダイヤルサイズ: 63mm

圧力範囲: MPa,bar,psi,kgなど,必要に応じて製造

マウント: 底

正確さ: 2.5％

保証: 1年

ポート: 青ダオ,上海,天津,寧波

利点: 防湿、耐摩耗性、環境に優しい、高耐久性

基本情報

起源の場所: 中国、青島

ブランド名: WYYW

証明: CE & ISO9001

モデル番号: YTN-63

お支払配送条件

パッケージの詳細: 内側のビニール袋、外側の輸出カートン。パレットはオプションです。

受渡し時間: 5-30DAYS

支払条件: TT、LC.Alipay.ウェスタンユニオン

供給の能力: 1ヶ月あたりの30-50k

ギャラリー

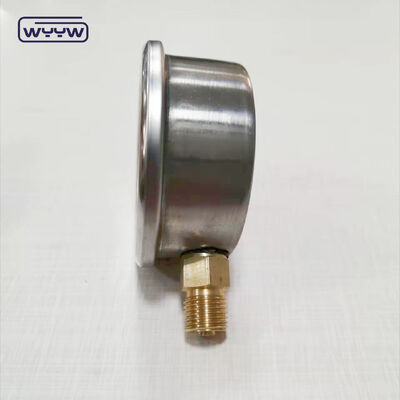

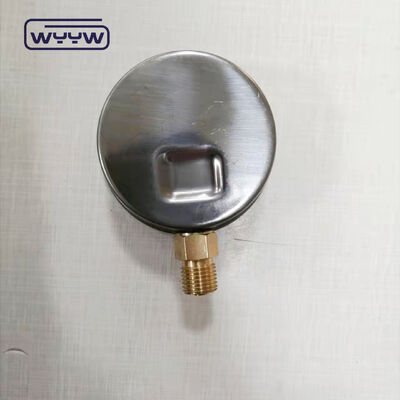

63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range

製品の説明

Chinse Factory 63mm Oil Filled Mud Pump Pressure Gauge

mud pump pressure gauge

Product Description

Name	Oil filled pressure gauge
Dials Size	40/50/63/100/150mm (or custom size available)
Case	Stainless steel case
Pressure	Mpa, other scale units bar, psi, kg/cm2 etc. optional
Ring	None
Movement	Brass
Socket	Brass
Bourdon tube	Bronze
Dial plate and pointer	Aluminum
Window	Acrylic / Plastic
Connection sizes	1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"
Connection threads	Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting	Bottom/Back and panel
Accuracy	1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6%
Pressure limitation	Steady: 3/4x full scale value Fluctuation: 2/3x full scale value Short time: full scale value

Product Application

Outdoor and severe ambient and process conditions
Use where harmful vibration and pulsation are present
Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems

Company Information

Qingdao DaZeFengYang is one professional pressure gauge and hardware tools manufacturer, who is also one member of China National Hardware Association.

Together with our highly skilled technical experts, we have put an effort to meet the quality of pressure gauge as per GB/T (Chinese Standard) & International Standards requirements, and have already got ISO9001, CE certificate for all our products, including: pressure gauge, gas regulator, cutting torch and welding torch etc.

Over the passed years development, there is now an impressive selection of products, both special and standard, with keen prices and deliveries, which together with the speedy sales and after sales service make our company attractive to customers all around the world, especially for those distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.

Welcome every friend to call, email us and visit our company. We sincerely hope to create wonderful future together with you.

Packaging & Shipping

Advantages

Advance Equipment and Professional Technology: We are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
Best After-sales Service: Our company provide best after-sale service all the time, for our goal is a long trade cooperation term.
Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection, we also have passed ISO9001 and UL certificated.
Quickly Delivery: Our company provides in-time delivery, always satisfy customers needs.
Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase. We can provide our high quality products with reasonable price.
OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market.

Contact

Whatsapp: +8615153253081

Email: sales1@qddzfy.com
