Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm

1000個
MOQ
Depends on total quantity
価格
Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
カスタマイズされたサポート: OEM、ODM、OBM
材料: プラスチック
元の場所: 中国製
ダイヤルサイズ: 40mm
圧力範囲: MPa,bar,psi,kgなど,必要に応じて製造
マウント: 戻る
品質: 1年
支払い: 様々な支払い方法
経験の作成: 10年
保証: 1y
ポート: チンタオ、上海
利点: 防湿、耐摩耗性、環境に優しい、高耐久性
基本情報
起源の場所: 中国、青島
ブランド名: WYYW
証明: CE & ISO9001
モデル番号: Y-40Z
お支払配送条件
パッケージの詳細: 内側のビニール袋、外側の輸出カートン。パレットはオプションです。
受渡し時間: 5-30DAYS
支払条件: TT、LC.Alipay.ウェスタン ユニオン
供給の能力: 1ヶ月あたりの30-50k
製品の説明

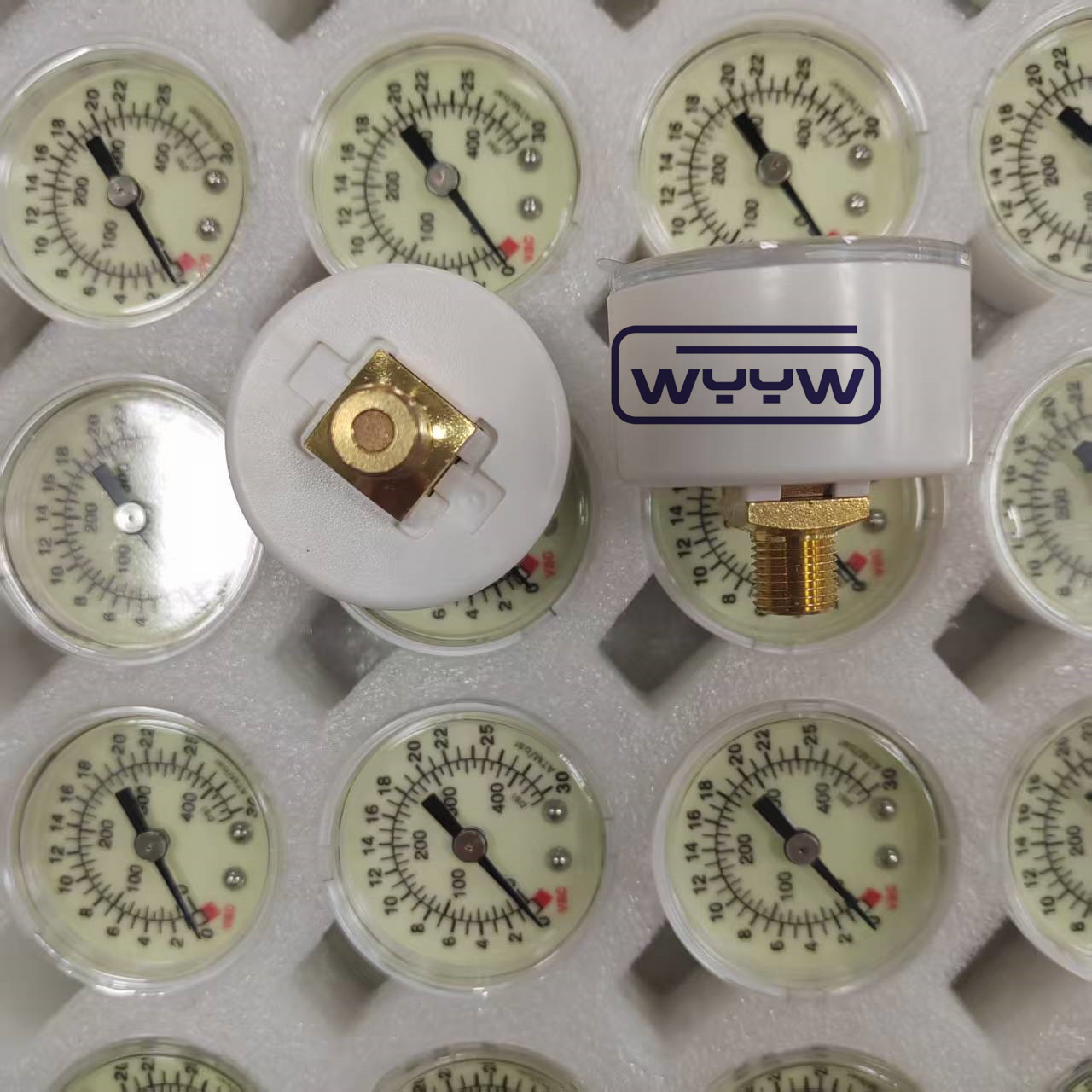

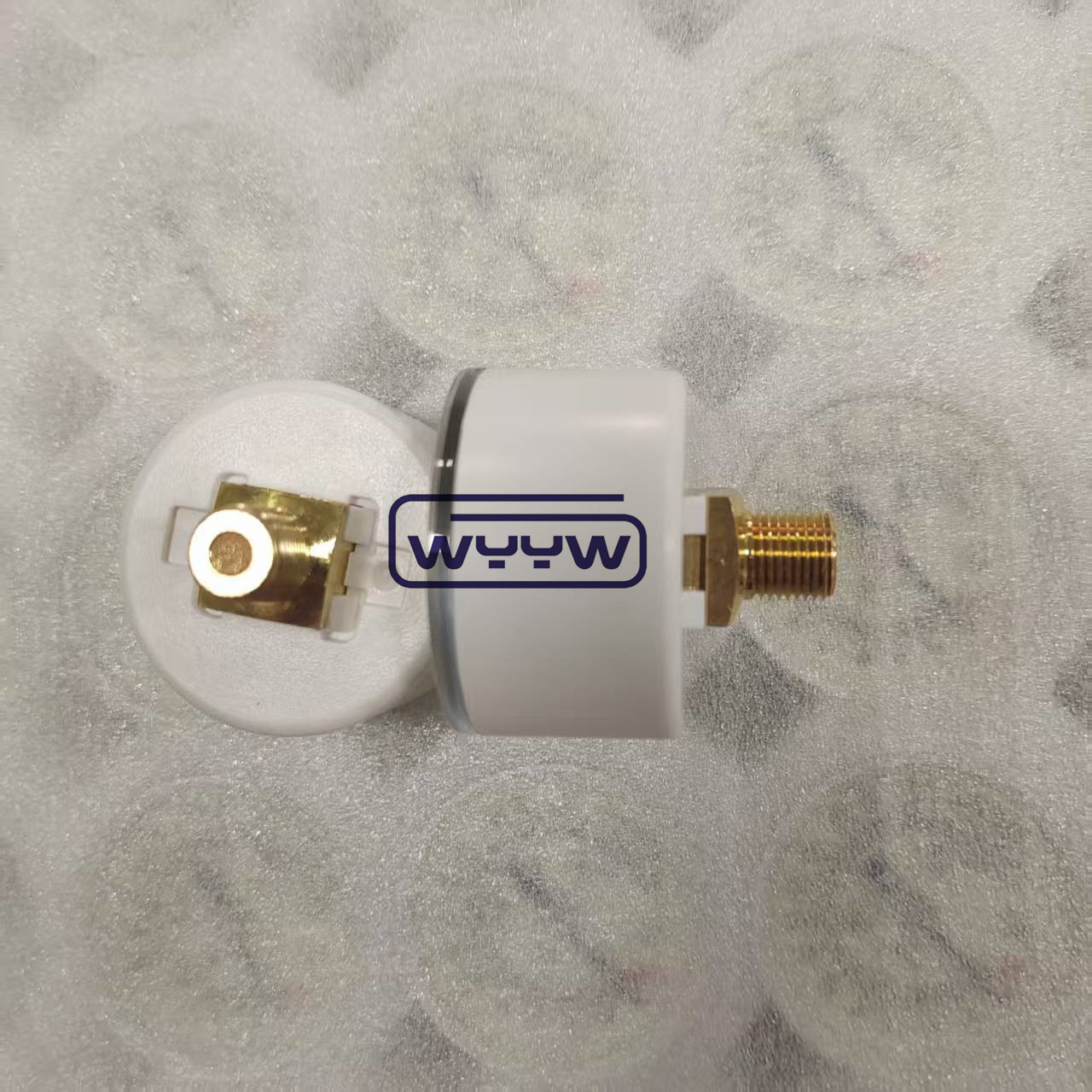

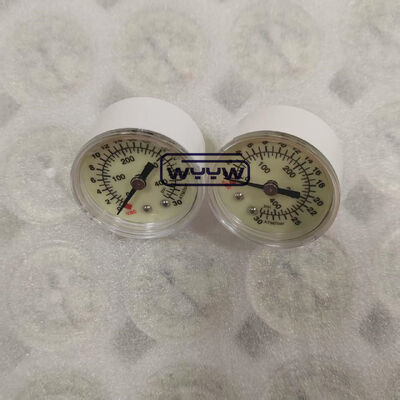

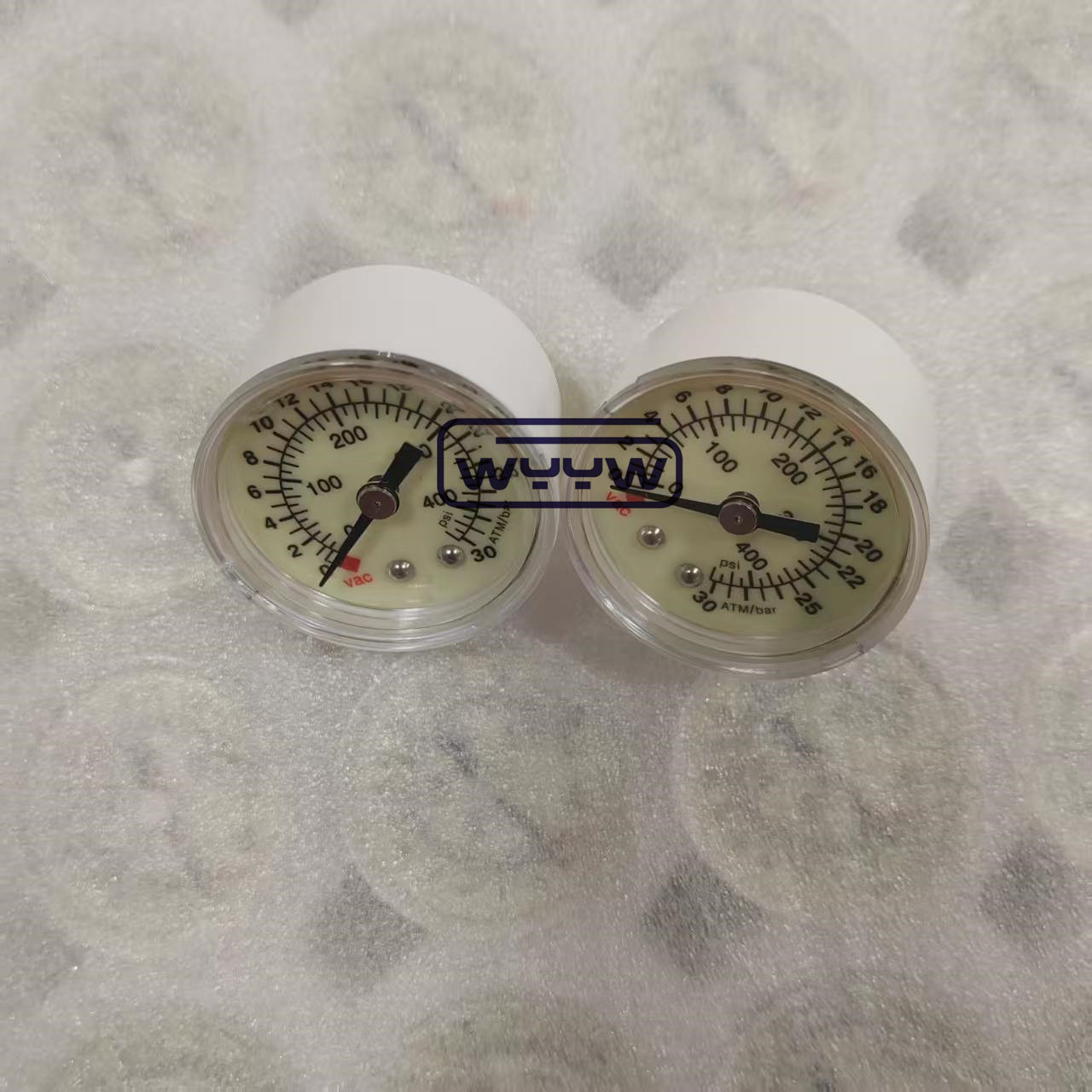

Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm
Product Overview
Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 0 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 1
Name Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm
Dials Size 40mm (or custom size available)
Case Plastic case
Pressure Mpa, other scale units bar, psi, kg/cm² etc. (optional)
Ring None
Movement Brass
Socket Brass
Bourdon tube Bronze
Dial plate and pointer Aluminum
Window Plastic
Connection sizes 1/8" for 1.5", 1/4 for 2", 2.5" case; 1/2 for 4", 6"
Connection threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom (Or panel, bottom mounting available)
Accuracy 1.5"(40mm), 2"(50mm), 2.5(63mm) - 2.5%
4"(100mm) and 6"(150mm) - 1.6%
Pressure limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 2 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 3 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 4
Product Applications
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 5
Company Information

Qingdao DaZeFengYang is a professional pressure gauge and hardware tools manufacturer, and a member of China National Hardware Association.

Together with our highly skilled technical experts, we have put effort into meeting quality standards for pressure gauges as per GB/T (Chinese Standard) & International Standards requirements. We have obtained ISO9001 and CE certification for all our products, including pressure gauges, gas regulators, cutting torches and welding torches.

Over years of development, we now offer an impressive selection of products, both special and standard, with competitive prices and reliable deliveries. Our speedy sales and after-sales service make our company attractive to customers worldwide, especially distributors and importers from Europe, Southeast Asia, Middle East, America and Australia.

Welcome to contact us by phone, email, or visit our company. We sincerely hope to create a wonderful future together with you.

Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 6 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 7 Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 8
Packaging & Shipping
Balloon Inflation Device Noctilucence Medical 30ATM Pressure Gauge 40mm 9
Our Advantages
  • Advanced Equipment and Professional Technology: Committed to offering high-quality gauges with advanced equipment and professional technology for customers worldwide.
  • Best After-sales Service: Providing excellent after-sale service with the goal of establishing long-term trade cooperation.
  • Serious Inspection Procedure with Excellent Quality: All pressure gauges undergo 100% inspection, and we have passed ISO9001 and UL certification.
  • Quick Delivery: Providing timely delivery to always satisfy customer needs.
  • Convenient Purchase and Cost Savings: As a skilled manufacturer, we offer convenient purchasing with high-quality products at reasonable prices.
  • OEM Orders: Extensive experience with OEM orders from well-known companies in USA and European markets.
